Customisable Design
Choice of colour, cap closures, and extended dip tube configurations.
Ergonomic Operation
Comfortably contoured handle designed for easy operation while wearing protective work gloves.
Leak-Proof System
Sealed venting allows liquid-filled bottles to be shipped and handled securely without spilling.
Chemical Resistant
Engineered to withstand harsh solutions and aggressive commercial liquids.
Customisable Design
Choice of colour, cap closures, and extended dip tube configurations.
Ergonomic Operation
Comfortably contoured handle designed for easy operation while wearing protective work gloves.
Leak-Proof System
Sealed venting allows liquid-filled bottles to be shipped and handled securely without spilling.
Chemical Resistant
Engineered to withstand harsh solutions and aggressive commercial liquids.
Canyon CHS Trigger Spray Heads
£1.50 GBP
£1.50 GBP
Upgrade Option: Supplied as a heavy-duty upgrade to the standard trigger head for 750ml bottles only.

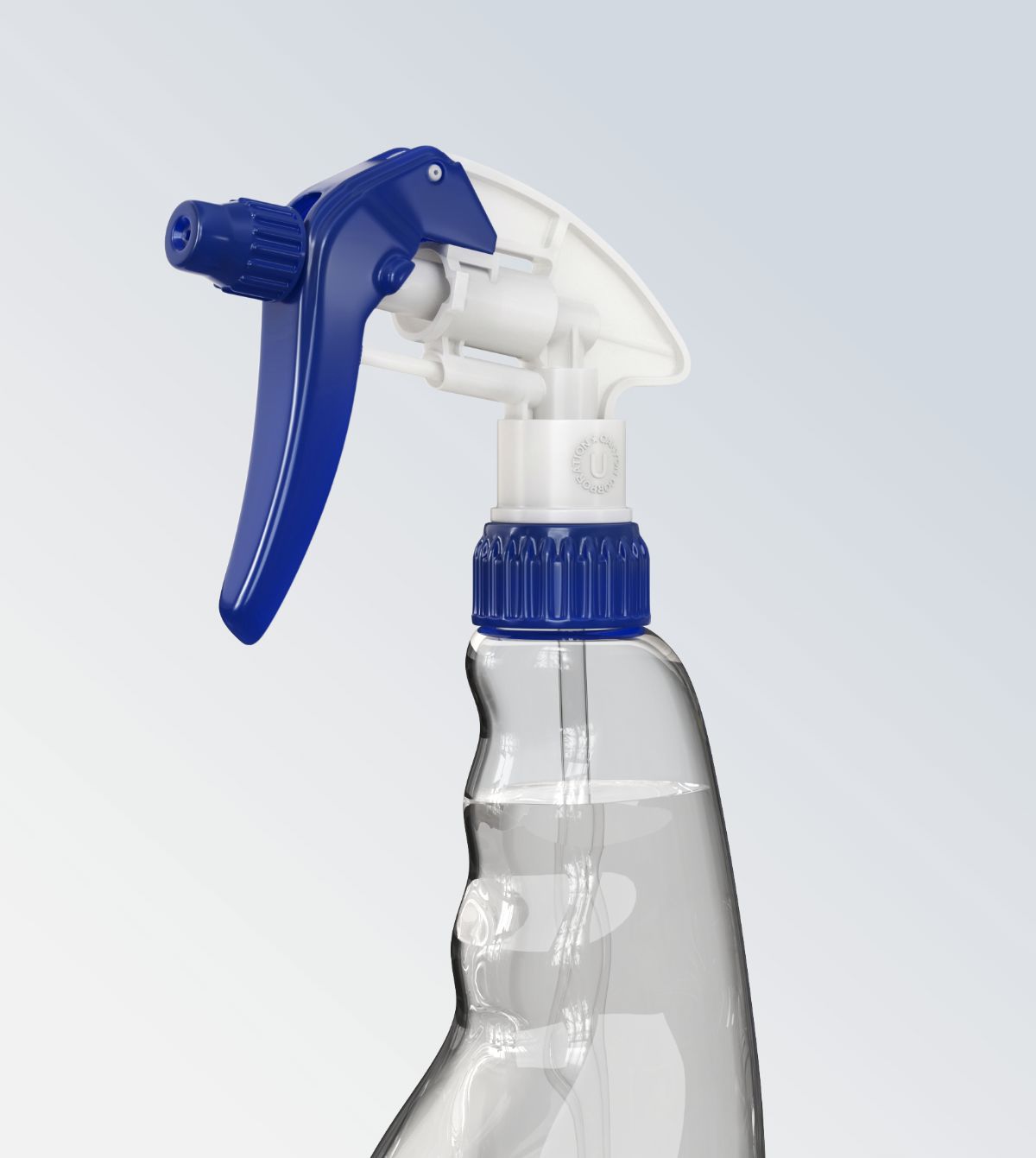

Canyon CHS-3A Industrial Trigger Sprayer
The world-renowned Canyon CHS-3A is the industry-standard trigger sprayer engineered for professionals requiring dependable durability and continuous use. Rated to a minimum of 50,000 trigger pulls and featuring a fully adjustable spray pattern, it is built to prevent repetitive strain during extended spraying jobs and eliminate premature trigger failure.
Key Benefits
Features
- Closable twist nozzle system with adjustable mist spray, high-velocity jet, or shut-off position
- Sealed venting system allows transit filled with liquid to cut down handling costs
- Compatible with 28/400 and 28/410 bottle neck finishes
- Available in sustainable PCR (post-consumer recycled) material options
Technical Specifications
| Output per Stroke | 1.1 cc ± 0.2 cc (water) |
| Spray Pattern | 170 mm ± 30 mm (at 150 mm distance) |
| Spray Angle | 0° – 60° |
| Endurance Rating | Minimum 50,000 pulls |
| Closure Compatibility | 28/400 and 28/410 neck finishes |
| Unit Weight | 37 g |
How It Works
The CHS-3A uses a dual-valve, spring-loaded piston mechanism. As the trigger engages, liquid is drawn through the dip tube past an intake ball check-valve into the main chamber. When depressed, the second internal valve directs the fluid through an internal spinner core, atomising the liquid before it exits the variable nozzle head.
Upgrade Option: Supplied as a heavy-duty upgrade to the standard trigger head for 750ml bottles only.
Canyon CHS-3A Industrial Trigger Sprayer
The world-renowned Canyon CHS-3A is the industry-standard trigger sprayer engineered for professionals requiring dependable durability and continuous use. Rated to a minimum of 50,000 trigger pulls and featuring a fully adjustable spray pattern, it is built to prevent repetitive strain during extended spraying jobs and eliminate premature trigger failure.
Key Benefits
Features
- Closable twist nozzle system with adjustable mist spray, high-velocity jet, or shut-off position
- Sealed venting system allows transit filled with liquid to cut down handling costs
- Compatible with 28/400 and 28/410 bottle neck finishes
- Available in sustainable PCR (post-consumer recycled) material options
Technical Specifications
| Output per Stroke | 1.1 cc ± 0.2 cc (water) |
| Spray Pattern | 170 mm ± 30 mm (at 150 mm distance) |
| Spray Angle | 0° – 60° |
| Endurance Rating | Minimum 50,000 pulls |
| Closure Compatibility | 28/400 and 28/410 neck finishes |
| Unit Weight | 37 g |
How It Works
The CHS-3A uses a dual-valve, spring-loaded piston mechanism. As the trigger engages, liquid is drawn through the dip tube past an intake ball check-valve into the main chamber. When depressed, the second internal valve directs the fluid through an internal spinner core, atomising the liquid before it exits the variable nozzle head.
Test reports and safety data sheets coming soon.
