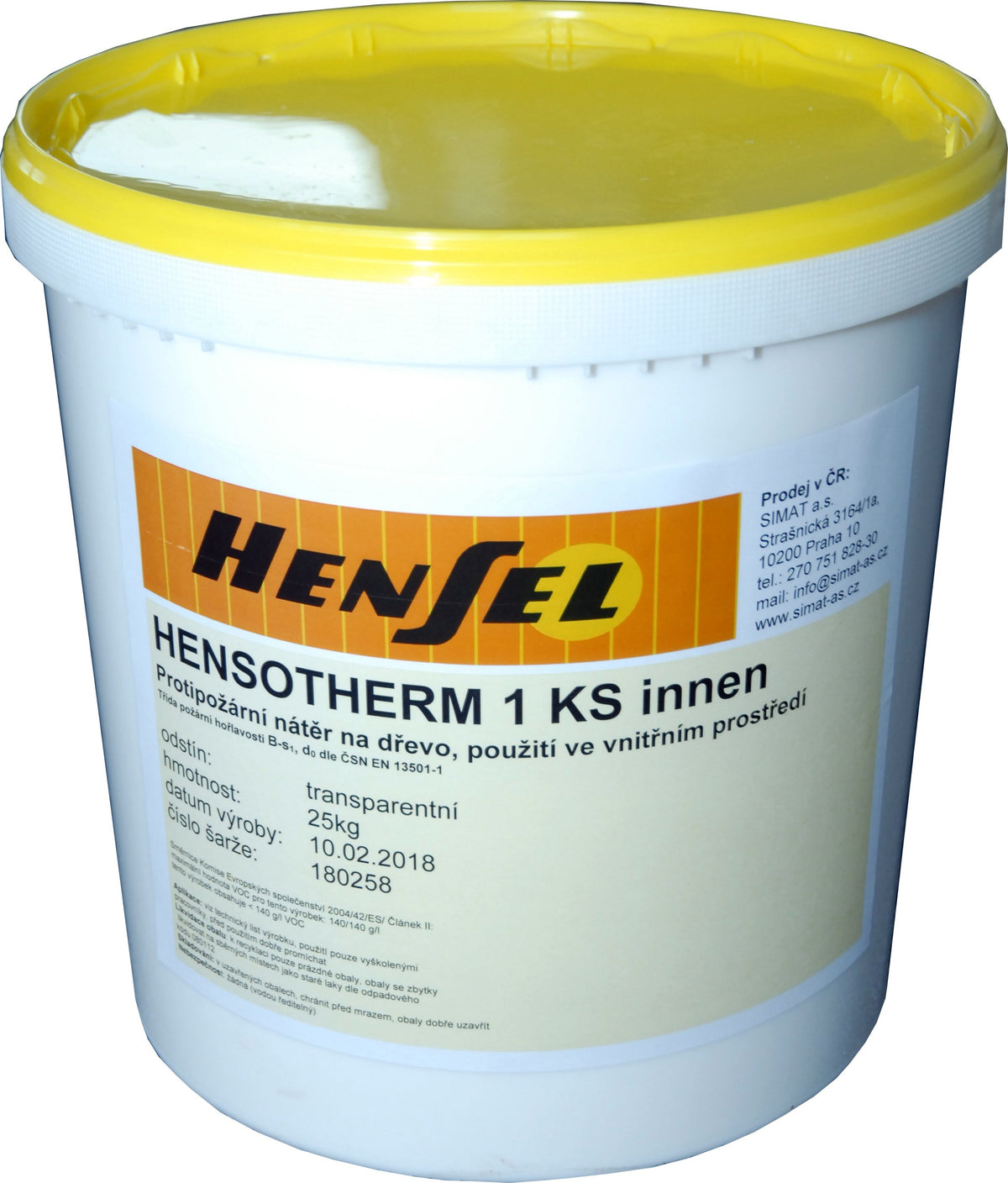

Hensotherm 1KS Internal Clear Intumescent 12.5KG (Base Coat)
What is this product?
HENSOTHERM 1 KS INNEN is a base coat and requires a top coat of HENSOTOP 84 AF (available separately). The top coat must be applied after the base coat has dried through, to protect against moisture.
Transparent fire protection coating for interior wood
HENSOTHERM 1 KS INNEN is an intumescent coating for the fire protection of interior wooden structures. It is used like a normal paint with a brush, roller or sprayer. It has a milky consistency as it is being applied, but becomes completely clear and transparent when dry, so that the surface structure of the wood remains visible.
Fire behaviour is classified B-s1, d0 according to DIN EN 13501 (SBI test).
Where it is used
- Solid wood, thickness over 12 mm
- Particle boards, thickness 12 mm or more
- Plywood for construction, thickness 12 mm or more
- Indoor use only, with top coat
- Suitable for impact walls in sports halls
Product characteristics
- Intumescent coating
- Synthetic resin dispersion
- Contains no solvents or formaldehyde
- Transparent when completely dry
- Moisture sensitive: once dry, the HENSOTOP 84 AF top coat must be applied
Technical data
- Application rate: 350 g/mยฒ (approx. 245 ฮผm wet), which can be applied in a single coating operation
- Drying time: approx. 12 to 24 hours per layer at approx. +20ยฐC and approx. 65% relative humidity
- Application by brush, roller or airless spray
- Do not thin
- Temperature above +10ยฐC and relative humidity below 80% during application and drying
-
Dries clear so the wood stays visible
-
Classified B-s1, d0 according to DIN EN 13501 (SBI test)
-
Free of solvents and formaldehyde
-
Single coat application at approx. 350 g/mยฒ
-
Apply by brush, roller or airless spray
Specifications & Documents
Full technical data and downloadable certification for compliance records.
| Finish | Transparent when completely dry |
| Use | Indoor only, with top coat |
| Application Method | Brush or roller (short pile lambswool roller recommended), or airless spray |
| Fire Classification | B-s1, d0 according to DIN EN 13501 (SBI test) |
| VOC Content | Below 40 g/l |
| Shelf Life | Minimum 12 months unopened at +20ยฐC from date of manufacture |
How to Apply
Simple application with standard tools โ no specialist equipment required.
-
1Prepare the surface for HENSOTHERM 1 KS INNENThe surface must be free from dust, dirt, grease, wax, mould, oil, glues and whitewash. Remove existing coatings completely to the sound substrate.
-
2Check conditions for HENSOTHERM 1 KS INNENTemperature above +10ยฐC and relative humidity below 80% during application and drying. The dew point must not be exceeded. Moisture content of the wood must be 15% or less.
-
3Prepare a sample area for HENSOTHERM 1 KS INNENFor all types of wood and wooden materials a suitable sample area is required before application.
-
4Prime before HENSOTHERM 1 KS INNENPriming with HOLZGRUND AQ improves adhesion and the appearance of wooden surfaces. Use HOLZGRUND SB on highly absorbent wooden surfaces, or to improve adhesion on smooth surfaces.
-
5Stir HENSOTHERM 1 KS INNENStir thoroughly before application. Do not thin.
-
6Apply HENSOTHERM 1 KS INNENApply by brush or roller (a short pile lambswool roller is recommended), or by airless spray at 200 to 250 bar with a 0.013 to 0.015 inch nozzle and a flow rate above 4 l/min. The required 350 g/mยฒ (approx. 245 ฮผm wet) can be applied in a single coating operation. Clean equipment with warm water.
-
7Allow HENSOTHERM 1 KS INNEN to dryAt approx. +20ยฐC and approx. 65% relative humidity, drying takes approx. 12 to 24 hours per layer. The coating becomes transparent after drying through.
-
8Top coat HENSOTHERM 1 KS INNEN with HENSOTOP 84 AFOnce HENSOTHERM 1 KS INNEN is fully dried (transparent, clear), the HENSOTOP 84 AF top coat must be applied. The coating system is sensitive to pressure in the first weeks.
Coverage Guide
Frequently Asked Questions
Can't find what you're looking for? Call us on 02920 026582 or use live chat for free expert advice.
HENSOTHERM 1 KS INNEN is an intumescent coating for the fire protection of interior wooden structures.
Fire behaviour is classified B-s1, d0 according to DIN EN 13501 (SBI test).
Yes. HENSOTHERM 1 KS INNEN is a base coat and requires a top coat of HENSOTOP 84 AF, applied after the base coat has dried through, to protect against moisture.
Solid wood over 12 mm, particle boards of 12 mm or more and plywood for construction of 12 mm or more. It is for indoor use only, with top coat.
By brush or roller (short pile lambswool roller recommended), or airless spray, at approx. 350 g/mยฒ (approx. 245 ฮผm wet). Do not thin.
Approx. 12 to 24 hours per layer at approx. +20ยฐC and 65% relative humidity. Drying time depends on temperature and relative humidity.
It is milky during application and becomes completely clear and transparent when dry, so the surface structure of the wood remains visible.
Minimum 12 months unopened at +20ยฐC from date of manufacture.
